Pin Gauge Manufacturers in India
Raj Engineers India is among the trusted Pin Gauge Manufacturers in India, offering high-precision gauges used for accurate measurement of hole sizes and verification of tight tolerances. Pin gauges are widely used in inspection processes where exact dimensional control is critical.
These gauges are commonly used along with plain plug gauges for tolerance verification and slip gauges used for calibration reference to ensure complete measurement accuracy in manufacturing processes.
Experience
Years of Experience
Team Members
Happy Clients

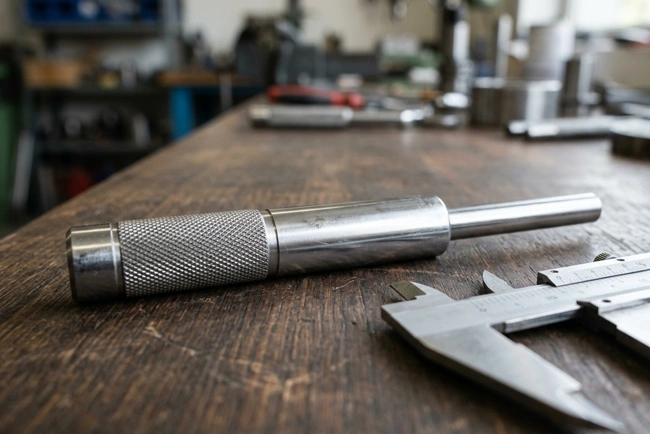

What is a Pin Gauge?
A pin gauge is a precise cylindrical measuring tool that is used to measure the size of holes. It is often used in quality control to check if a hole is the right size.
Pin gauges are simple yet highly accurate tools that provide quick and reliable measurement results in production environments.
Pin gauges are also known as:
Pin Gauge Manufacturer in India & Gujarat
As a reliable Pin Gauge Manufacturer in India, Raj Engineers India supplies precision gauges across Gujarat and all major industrial regions. Our pin gauges are widely used in:
Industries We Serve:
- Automotive industries
- CNC machining units
- Precision engineering industries
- Tool rooms and inspection departments
Our manufacturing setup ensures consistent quality and timely delivery.
Types of Pin Gauges
Standard Pin Gauge
Used for general hole size measurement.
Go / No-Go Pin Gauge
Used for tolerance checking in production.
Taper Pin Gauge
Used for checking tapered holes.
Special Purpose Pin Gauge
Custom-designed gauges for specific applications.
Technical Specifications of Pin Gauge
| Parameter | Details |
|---|---|
| Material | High-grade tool steel |
| Hardness | 58–62 HRC |
| Accuracy | High precision tolerances |
| Surface Finish | Precision ground |
| Size Range | Wide range of standard sizes |
| Tolerance | As per requirement |
| Calibration | Available with certification |
Features of Pin Gauges
High accuracy
Smooth surface finish
Excellent wear resistance
Long service life
Compact and easy to use
Reliable measurement performance
Benefits of Using Pin Gauges
Accurate Hole Measurement
Ensures precise verification of hole sizes.
Improved Quality Control
Maintains consistency in production.
Quick Inspection
Easy and fast measurement process.
Reduced Errors
Minimizes measurement variations.
Cost Effective
Reduces rejection and rework.
Applications of Pin Gauges

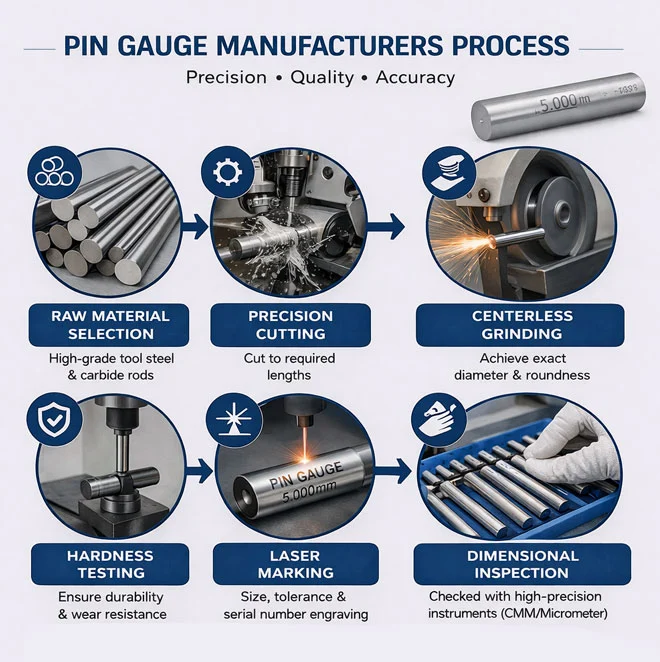

Manufacturing Process
Selection of High-Quality Raw Material
Carefully selecting premium-grade raw materials to ensure strength, durability, and long service life.
Precision Machining
Using advanced machining processes to achieve accurate dimensions and tight tolerances.
Heat Treatment for Hardness
Applying controlled heat treatment to achieve 58–62 HRC hardness for improved wear resistance.
Grinding and Finishing
Performing precision grinding to ensure superior surface finish and exact dimensional accuracy.
Final Inspection and Testing
Thoroughly inspecting and testing each gauge to meet strict quality and performance standards.
Calibration and Certification
Calibrating the gauge and providing certification to ensure precise and reliable measurement results.
Quality Assurance
Each pin gauge undergoes strict quality checks including:
Why Choose Raj Engineers India?
Custom Pin Gauge Solutions
We provide customized pin gauges based on:
Cities We Serve Across India
We deliver precision gauges on time and with consistent quality to industries in major cities across India for use in manufacturing and engineering.
Frequently Asked Questions – Pin Gauge
It is used to measure and verify hole sizes with high accuracy.
They are made from high-grade hardened tool steel.
Automotive, CNC machining, and general engineering industries.
Yes, they can be manufactured as per specific requirements.
Through precision grinding and strict quality inspection.
Yes, they are available in a wide range of sizes and tolerances.
Yes, supply is available across Gujarat and all major industrial cities in India.
Conclusion
A pin gauge is a precise cylindrical measuring tool that is used to measure the size of holes. High quality pin gauges help ensure precision also improve product quality and maintain consistency in manufacturing processes.
